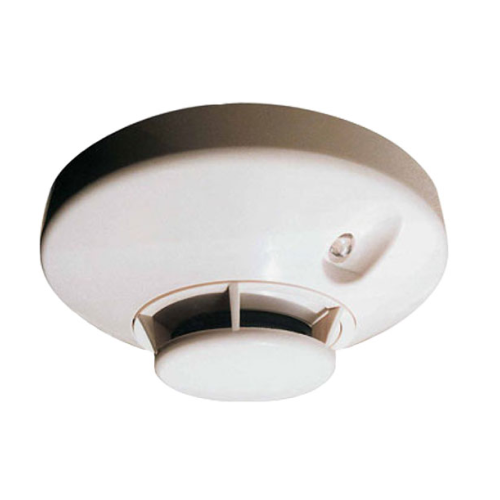

Marine addressable Photoelectric smoke detector incorporating with unique high performance chamber which allows the sensor threashold level to be increased, thereby improving the signal to noise ratio and reduce susceptibility to false alarms.
Specification
Diameter:102mm
Height:50mm
Weight:106g(with base)
Operating Temperature Range: -10deg~55deg
Operating Humidity Range:10%~95%RH,Noncondensing
Max Air Velocity:10m/s
Operating Voltage:15~35VDC
Standby Current: be smaller or equal to 700uA (24VDC)
Alarm Current(LED on) :be smaller or equal to 3.0mA (24VDC)
